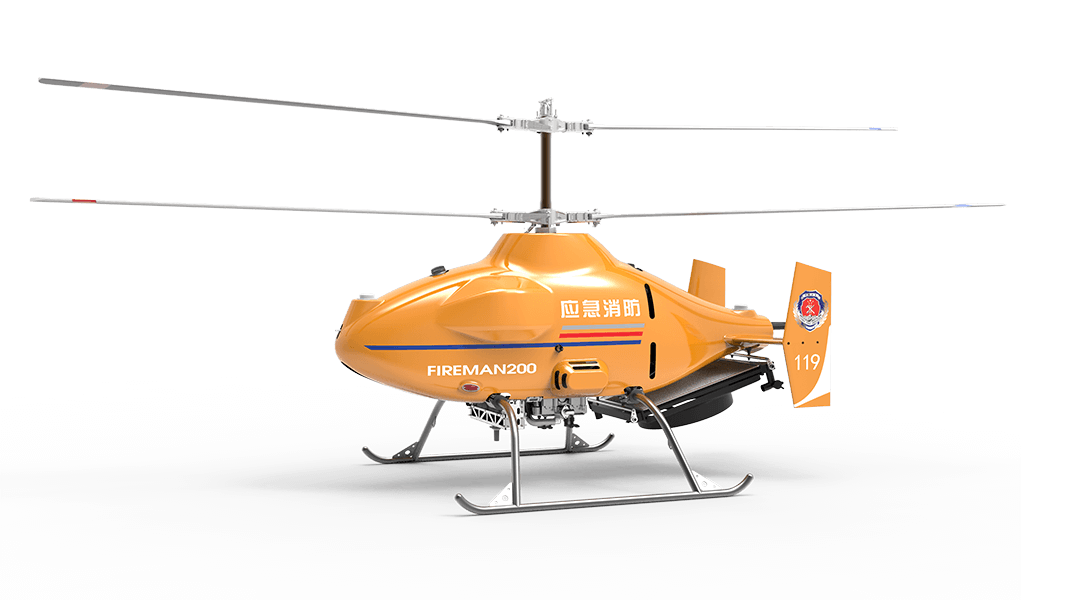

TD5 Coaxial Unmanned Helicopter

TD5 coaxial unmanned helicopter is designed with the coaxial dual-rotor configuration based on the high cost-effective concept, adopts the airframe structure made of titanium alloy and composite materials, and is equipped with the piston aeroengine and MEMS integrated navigation and positioning system. By virtue of all these, it features low observability and excellent environmental adaptability.

Featuring small rotor size, fast flight speed, strong wind resistance capability, and low observability, the helicopter can serve as a powerful weapon in fights between the Red and the Blue Teams.

300kg

Max. take-off weight

140km/h

Max. level speed

80kg

Max. payload capacity

90-120km/h

Cruising speed

50-100km

Operating radius

3000m

Service ceiling

Formation Flight and Remote Take-off/Landing

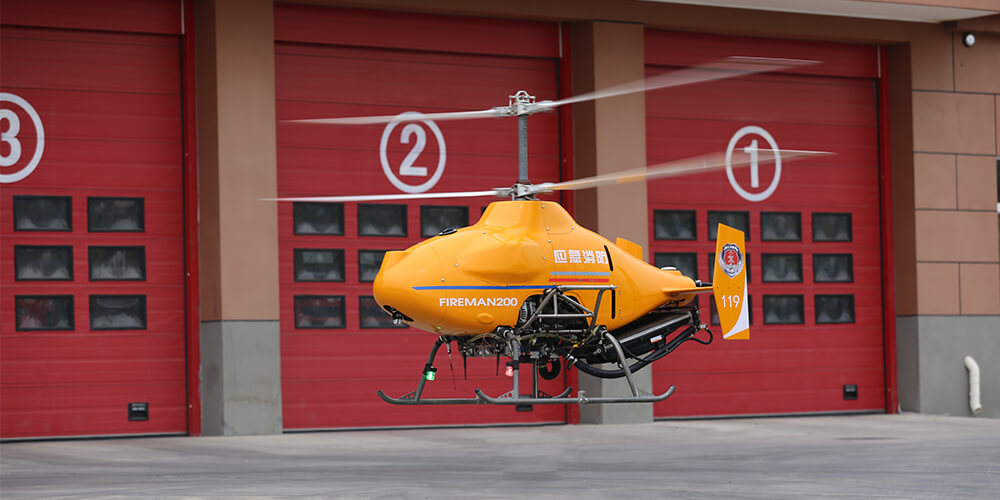

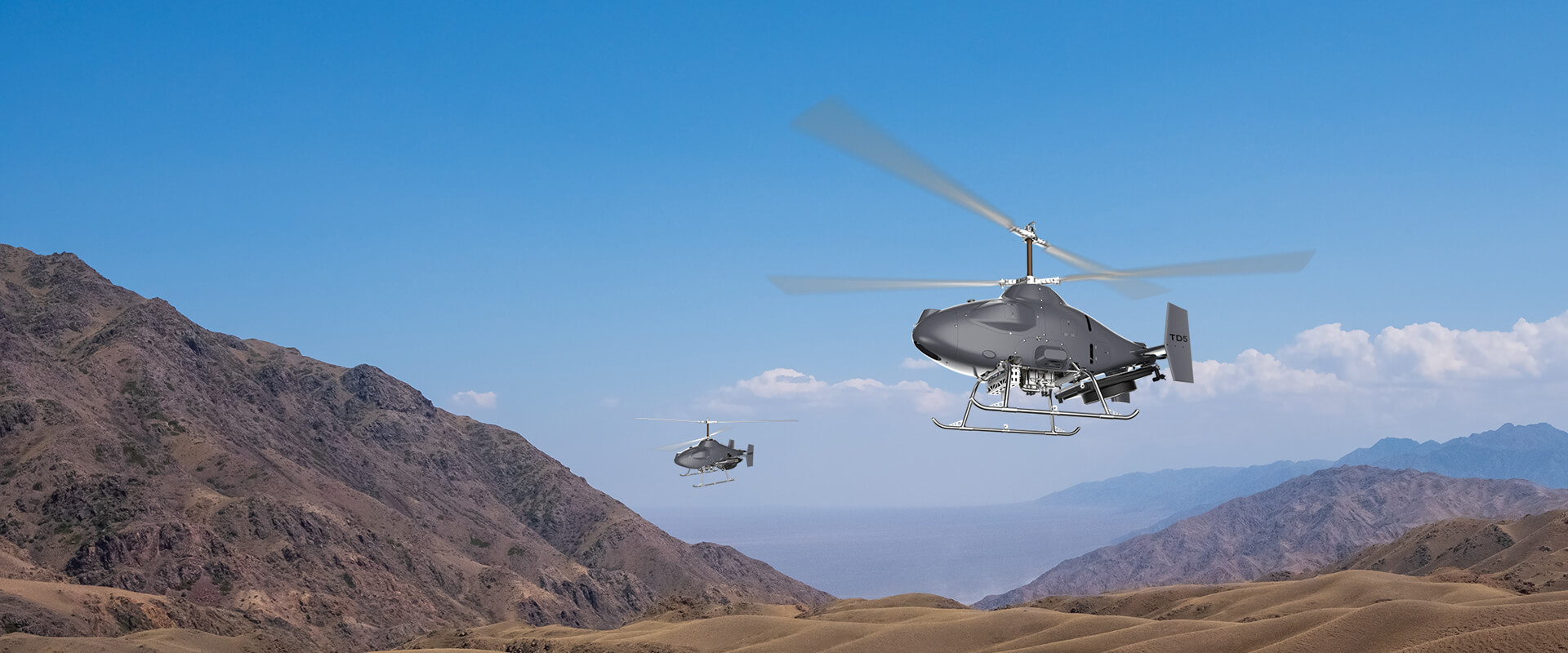

The multi-helicopter coordinated TT&C data link and the ground control software for controlling multiple helicopters by one ground control station are configured to support remote startup. It is capable of planning for formation pattern, safety distance warning, high-accuracy positioning, terrain clearance measurement, and switchover between different control modes, by virtue of which, coordinated control over multi-helicopter formation flight becomes feasible. A large-capacity emergency battery is equipped. In addition, rich remote control functions such as voice prompt and pre-programmed timing control are available. This helicopter can be used to execute complicated missions.

Low Observability and High Maneuverability

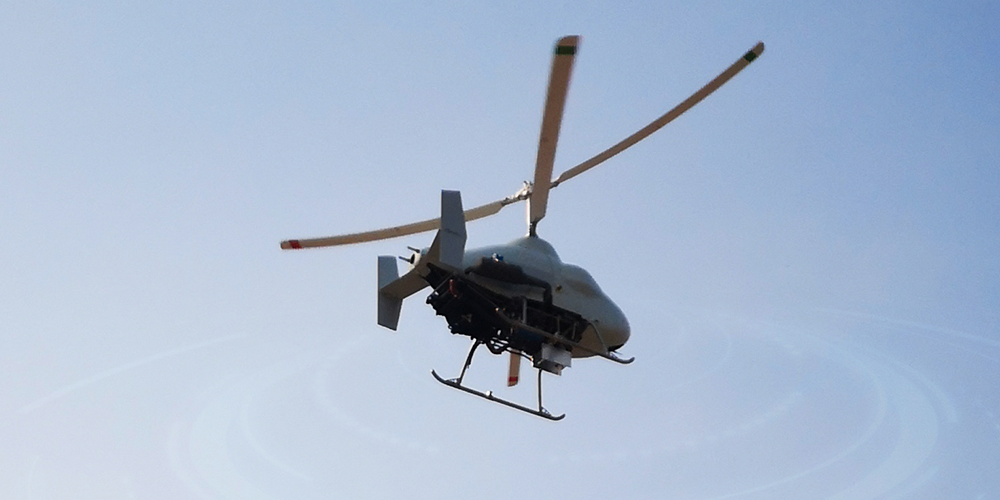

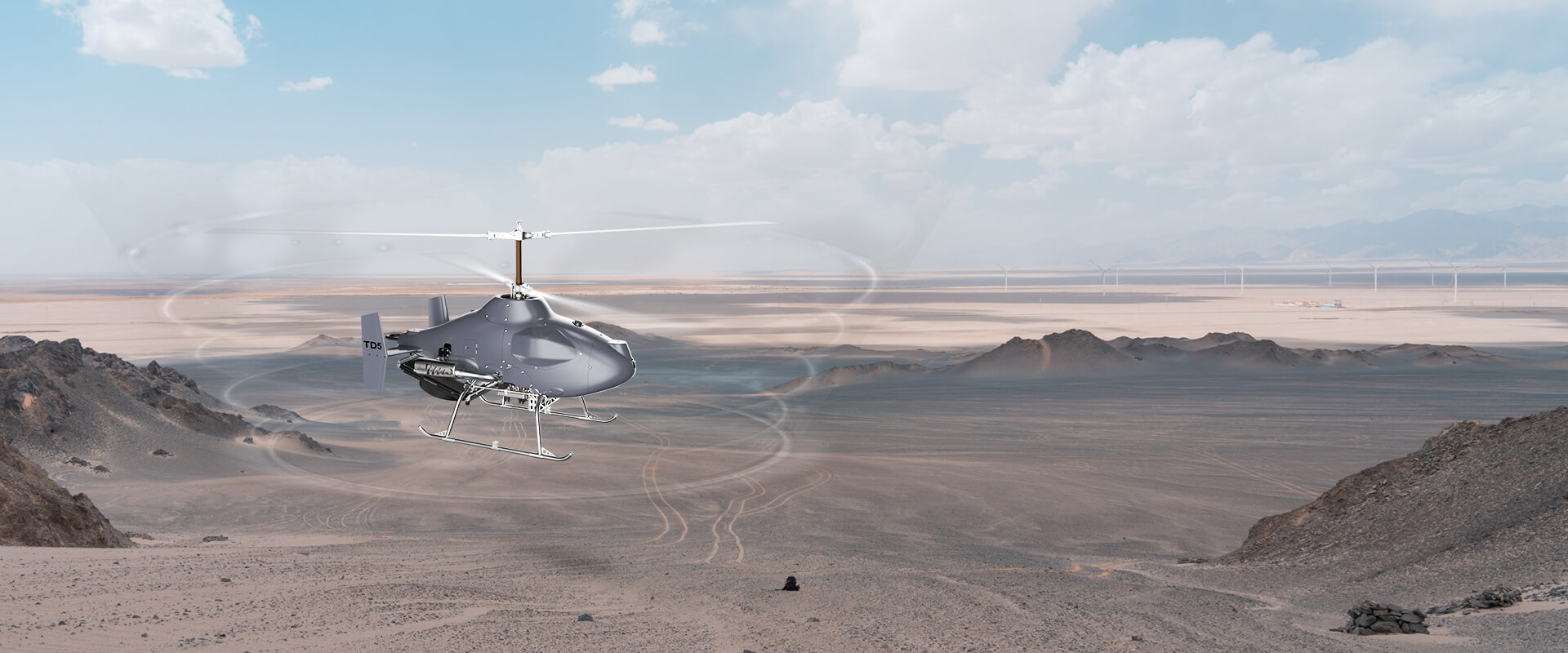

Configured with rotor blades made of wave-transmitting materials and the multi-stage noise reduction and bleed air cooling and exhaust system, and adopting the compact fuselage design and sky gray coating, this helicopter features low observability. Owing to measures such as the lightweight and high-efficiency rotor and control system, and compact tail wing, this unmanned helicopter presents high maneuverability.

Dual-Redundancy Configuration and High Safety

This helicopter adopts a highly cost effective aeroengine as its power system, consists of the glass fiber fuselage and aluminum alloy airframe, and is configured with the integrated navigation equipment. By virtue of diversified safety designs such as dual-antenna differential heading and geomagnetic heading measurement capabilities, dual-redundancy sensor configuration, onboard emergency power supply, and nearest forced landing policy, this helicopter can fly safely and stably in different environments with superior flight safety.

High Loading Capacity and Multi-Mission Capability

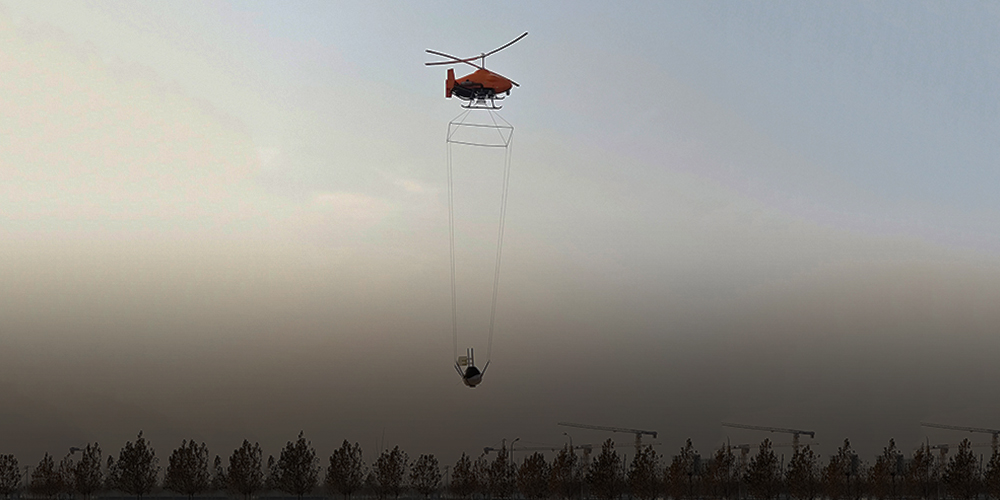

The operating empty weight of TD5 unmanned helicopter is low, and thus it enjoys high loading capacity. When loading payloads of 100 kg, it can fly over 2 hours in plains for executing miscellaneous missions such as cargo transportation, agriculture, forestry, and plant protection, captive flight test with heavy equipment, and reconnaissance and strike. Space for installing the large-size payload, multi-channel 28 VDC power supply interfaces, and payload TT&C communication interfaces are reserved. Therefore, this helicopter can carry diversified mission payloads which support rapid reloading, thus featuring strong multi-mission capability.

Intelligent Control and Easy to Use

This helicopter enjoys high intelligent control level. With multifarious sensors and situational awareness equipment, it can implement nearest forced landing, avoidance of no-fly zone, response and control in case of gust, and other control functions. By virtue of the cooperation among the smart ground control station, LoS data link, BeiDou short message, 4G/5G mobile communication, and ground control software, the whole flight process can be monitored. This method is easy to use and the operation and maintenance cost is low.
